TLP124BV Office Machine Programmable Controllers Office Machine Telecommunication common ic chips

Brand Name : TOSHIBA

Model Number : TLP124BV

Certification : Original Factory Pack

Place of Origin : Original

MOQ : 50pcs

Price : negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 5200PCS

Delivery Time : 1 day

Packaging Details : please contact me for details

Tstg : −55~125 °C

Topr : −55~100 °C

Tsol : 260 °C

PT : 200 mW

ΔPT / °C : −2.0mW / °C

BVS : 3750 Vrms

Contact Now

TLP124BV Office Machine Programmable Controllers Office Machine Telecommunication


TLP124BV Office Machine Programmable Controllers Office Machine Telecommunication common ic chips


The TOSHIBA mini flat coupler TLP124 is a small outline coupler, suitable for surface mount assembly.
TLP124 consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode.

• Collector−emitter voltage: 80 V min.
• Current transfer ratio: 100% min.
Rank BV: 200% min.
• Isolation voltage: 3750Vrms min.
• UL recognized: UL1577, file No. E67349



Current Transfer Ratio

Classification Ta = 25°C
IF = 1mA
VCE = 0.5V		 Ta = 25°C
F = 0.5mA
VCE = 1.5V		 Ta = −25~75°C
IF = 1mA
VCE = 0.5V		 Marking Of Classification
Rank BV 200% 100% 100% BV
Standard 100% 50% 50% BV, Blank

(Note) Application type name for certification test, please use standard product type name, i. e. TLP124 (BV): TLP124

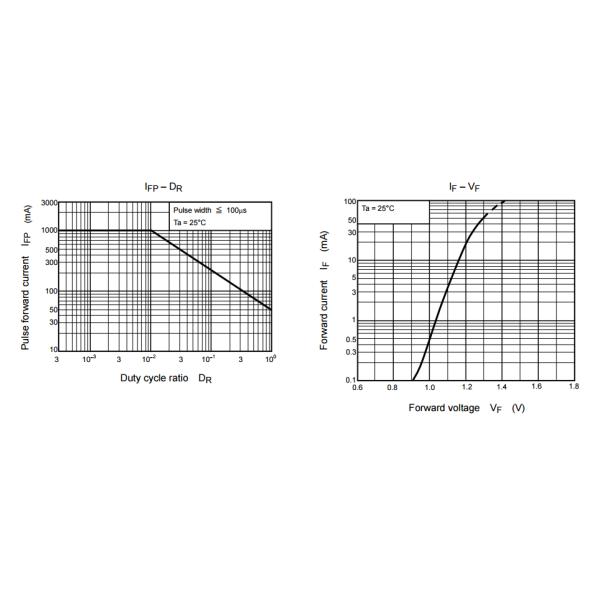

Absolute Maximum Ratings (Ta = 25°C)

Characteristic Symbol Rating Unit
LED
Forward current IF 50 mA
Forward current derating ΔIF / °C −0.7 (Ta ≥ 53°C) mA / °C
Peak forward current (100μs pulse, 100pps) IFP 1 A
Reverse voltage VR 5 V
Junction temperature Tj 125 °C
Detector
Collector−emitter voltage VCEO 80 V
Emitter−collector voltage VECO 7 V
Collector current IC 50 mA
Peak collector current (10ms pulse, 100pps) ICP 100 mA
Power dissipation PC 150 mW
Power dissipation derating (Ta ≥ 25°C) ΔPC / °C −1.5 mA / °C
Junction temperature Tj 125 °C
Storage temperature range Tstg −55~125 °C
Operating temperature range Topr −55~100 °C
Lead soldering temperature (10s) Tsol 260 °C
Total package power dissipation PT 200 mW
Total package power dissipation derating (Ta ≥ 25°C) ΔPT / °C −2.0 mW / °C
Isolation voltage (AC, 1min., R.H. ≤ 60%) (Note 1) BVS 3750 Vrms
